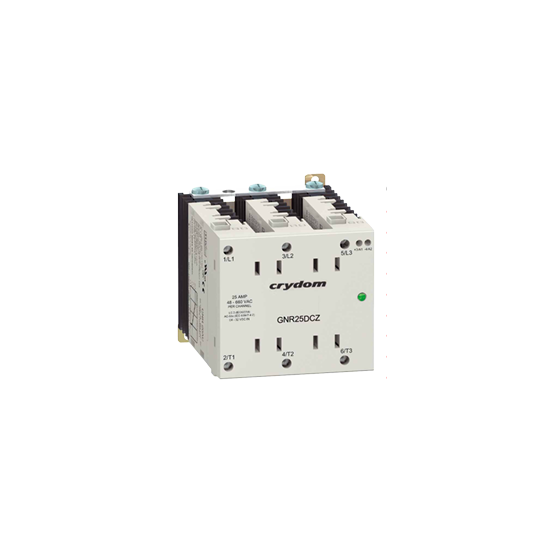

Three-Phase Solid State Relay Crydom GNR25DCZ — 3×25A / 4-32V DC / 48-600V AC
GNR25DCZ
€198.56
Excl. Tax
€238.27
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 25 units –
Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
Output Specifications
| Parameter | Value |
|---|---|
| Operating Voltage (47–440 Hz) | 48 – 600 Vrms |
| Transient Overvoltage (Vpk, t = 1 min) | 1100 V |
| Maximum Load Current | 25 Arms |
| Minimum Load Current | 0.1 Arms |
| Maximum Off-State Leakage Current @ Rated Voltage | 0.25 mArms |
| Static Off-State dv/dt (Ta = 25 °C) | 500 V/µs |
| 1 Second Surge Current (Apk, Ta = 25 °C) 50/60 Hz | 130 A |
| Forward Voltage Drop (Vpk @ max, Ta = 25 °C) | 1.30 V |
| Maximum Surge Current 1 cycle 50/60 Hz (Apk) | 286 / 300 A |
| Maximum I²t for Fusing (50/60 Hz, ½ cycle) | 410 / 374 A²s |
| HP Ratings at 240V / FLA | 1 HP / 4.2 Arms |
| HP Ratings at 380V / FLA | 2 HP / 4.3 Arms |
| HP Ratings at 480V / FLA | 3 HP / 4.8 Arms |
| Min/Max stranded wire | 16 / 8 AWG |
| Min/Max solid wire | 16 / 10 AWG |
Input Specifications — GNR25DCZ (4–32 V DC)
| Parameter | Value |
|---|---|
| Control Voltage Range | 4.0 – 32 V DC |
| Minimum Turn-On Voltage | 4.0 V DC |
| Must Turn-Off Voltage | 1.0 V DC |
| Minimum Input Current (for on-state) | 22 mA |
| Maximum Input Current | 28 mA |
| Input Resistance | Current Regulated |
| Maximum Turn-Off Time | ½ cycle |
| Maximum Turn-On Time (zero-crossing) | ½ cycle |
| Turn-On Time (instantaneous version R suffix) | 0.1 ms |
| Min/Max stranded/solid wire | 24 / 16 AWG |
General Specifications
| Parameter | Value |
|---|---|
| Ambient Operating Temperature Range | -20 °C → +80 °C |
| Ambient Storage Temperature Range | -40 °C → +100 °C |
| Dielectric Strength, Input to Output (50/60 Hz) | 4000 Vrms |
| Dielectric Strength, Input/Output to Ground (50/60 Hz) | 2500 Vrms |
| Maximum Capacitance, Input/Output | 8 pF |
| Input Status Indicator | Green LED |
| Housing Material | UL 94V0 (self-extinguishing) |
| Weight | 600 g (21.17 oz) |
| Recommended Terminal Screw Torque Range | 0.6 – 0.7 Nm (5.0 – 6.0 in-lb) |
| Mounting | DIN Rail or Panel Mount |
Mechanical Specifications
| Dimension | Value |
|---|---|
| Width | 90.0 mm (3.54 in) |
| Height | 88.1 mm (3.47 in) |
| Depth | 123.4 mm (4.86 in) |
| Overall Height with Mounting | 97.0 mm (3.82 in) |
| Overall Width with Mounting | 91.2 mm (3.59 in) |
| Mounting Hole Centers | 82.8 mm (3.26 in) |
| Mounting Hole Diameter | Ø 4.5 mm (0.18 in) |
| General Tolerance | ± 0.5 mm (± 0.02 in) |
Agency Approvals & Standards
| Standard / Agency | Reference |
|---|---|
| Product compliance | IEC 62314 |
| CE marking | IEC 62314 |
| UL recognized | UL 508 — File E79183 |
| CSA recognized | Included UL 508 |
| TÜV | EN 60950-1/A1:2010 — File LR 38595 |
| Vibrations | 35 mm / 10–55 Hz (IEC 60068-2-6) |
| Shock | 15 G / 11 ms (IEC 60068-2-27) |
| Electrostatic Discharge | Level 3 — IEC 61000-4-2 |
| Radiated Electromagnetic Noise | Level 3 — IEC 61000-4-3 |
| Immunity to Electrically Fast Transients | Level 3 — IEC 61000-4-4 |
| Immunity to Electrical Surges | Level 3 — IEC 61000-4-5 |
| Conducted Electromagnetic Noise | Level 3 — IEC 61000-4-6 |
| Conducted and Radiated Noise (industrial environments) | Class A — CISPR 11 |
