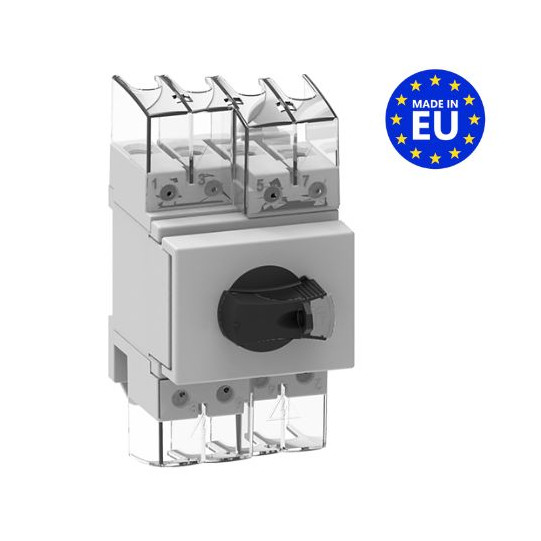

![DC switch-disconnectors F1 - 1200v-32A -2P - DIN Rail - Direct handle main product photo](https://optim-elec.com/media/catalog/product/t/e/telergon_f1-00322p1db_-_f1-00324b1db_-_f1-00324p1db_1_1.jpg?width=541&height=541&store=en&image-type=image)
TELERGON
DC switch-disconnectors F1 - 1200v-32A -2P - DIN Rail - Direct handle
F1-00324B1DB
€27.90
Excl. Tax
€33.48
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock –
Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 100€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
The F1-00324B1DB DC isolator-switch is equipped with a direct locking handle and is designed for DIN rail installation. It is suitable for handling direct current loads in photovoltaic systems.
Technical Specifications:
Rated current: 32A
Number of poles: 4 (Type B)
Rated voltage: 1200V
Rated insulation voltage: 1500V
Rated impulse withstand voltage: 8000V
Degree of protection: IP66
Operating temperature: -40°C to +85°C
Overvoltage category: III
In short
SKU
F1-00324B1DB
Product Name
DC switch-disconnectors F1 - 1200v-32A -2P - DIN Rail - Direct handle
Range
F1
