Eaton

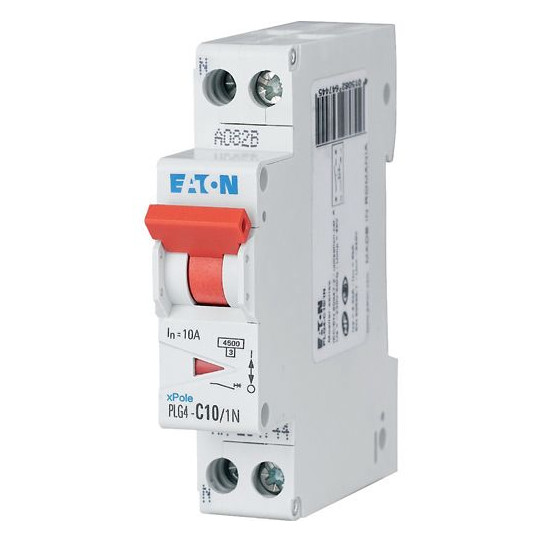

Miniature Circuit Breaker 1P+N, 10A, Curve C, 4.5kA
ETN264744
€6.33
Excl. Tax
€7.60
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock more than 25 units –
Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Specification | Value |
|---|---|
| Product Name | Eaton xPole series miniature circuit breaker |
| Catalog Number | 264744 |
| Model Code | PLG4-C10/1N |
| EAN | 4015082647445 |
| Product Type | Modular miniature circuit breaker |
| Poles | Single-pole + Neutral (1P+N) |
| Protected/Total Poles | 1 / 2 |
| Rated Current (In) | 10 A |
| Tripping Characteristic | Type C |
| Rated Operational Voltage (Ue) | 230 V AC |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Frequency Rating | 50–60 Hz |
| Rated Short-Circuit Breaking Capacity (Icn) | 4.5 kA |
| Pollution Degree | 2 |
| Overvoltage Category | III |
| Degree of Protection | IP20 |
| Connectable Conductor Section (Solid / Stranded) | 1–25 mm² |
| Dimensions (W×H×D) | 17.5 × 73 × 86 mm |
| Modular Width | 1 module |
| Weight | ~0.13 kg |
| Ambient Operating Temp. | −25 °C to +75 °C |
| Current Limiting Class | 3 |
| Compliance | RoHS conform |
| Application | Residential and commercial circuit protection |
