Lettel

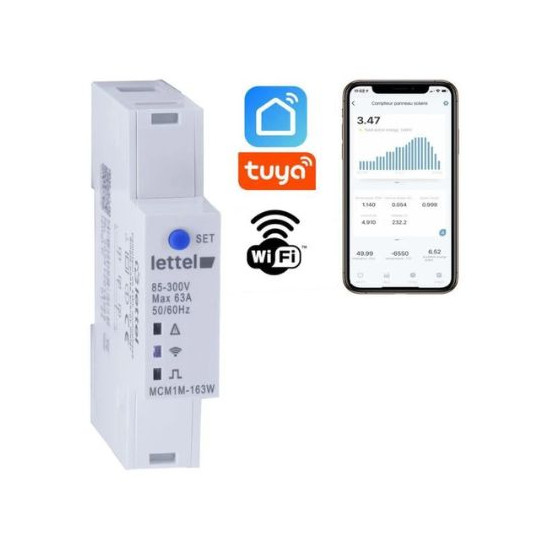

Single-phase WiFi Energy Meter 230V 63A

MCM1M-163W

€84.17 Excl. Tax
€101.00 Inc. Tax
preorder Supply in process – Average delivery time 4/6 weeks
  • check2 Technical support and dedicated single point of contact
  • check2 Free delivery from 200€ of purchase (Metropolitan France)
  • check2 100% secure payments maestro mastercard visa payplug applepay
Technical informations

The Lettel MCM1M-163W single-phase WiFi energy meter allows you to accurately monitor your power consumption and control your circuit remotely via smartphone. With its built-in WiFi module, it is fully compatible with Smart Life and Tuya apps.

Main features:

  • Measurement of active and reactive energy (import, export, total)
  • Instantaneous measurements: voltage, current, active and reactive power, power factor, frequency
  • 63A internal relay: manual or programmable circuit disconnection
  • Weekly scheduling and threshold alarms management (voltage, current, consumption)
  • Voice control compatible with Google Assistant and Alexa
  • Consumption history and .csv data export
  • Notifications via SMS, call or push (via app and services)

Technical specifications:

Specifications Details
Rated voltage 230V AC
Voltage range 90 ~ 300V
Frequency 50/60Hz
Maximum current 63A
Mounting 35 mm DIN Rail – 1 module (18mm)
IP rating IP20
Communication WiFi 2.4GHz (802.11 b/g/n)
Accuracy Class 1 (active energy) / Class 0.5 (instantaneous values)
Operating temperature -25°C to +70°C
Compliance CE, RoHS, IEC62053-21, DIN43880
Warranty 3 years
