Eaton

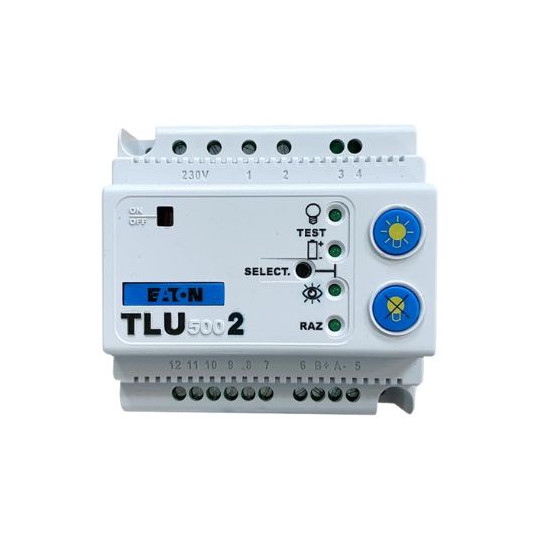

BAES Control Unit TLU2 - Visibility+ & Automatic Shutdown
LUM10312
€76.80
Excl. Tax
€92.16
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
Supply in process
– Average delivery time 4/6 weeks
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
The Eaton TLU2 LUM10312 control unit enables centralized management of emergency lighting blocks (BAES). It offers advanced features such as automatic shutdown, Visibility+ enhancement, anti-panic mode, and regulatory manual test launching.
| Specifications | Details |
|---|---|
| Reference | LUM10312 |
| Application | ADR, STD, SATI systems | Visibility+ function | Sleeping area management | Anti-panic | Manual testing |
| Power supply | 230V - 50/60Hz |
| Consumption | 17 mA |
| Maximum number of controllable BAES | Up to 500 blocks |
| Operating temperature range | +5°C to +40°C |
| Mounting type | Omega Rail (5 modules) |
| Dimensions | 90 x 88 x 60 mm (H x W x D) |
| Weight | 0.55 kg |
| Internal battery | 8.4V - 0.11Ah |
| Output voltage | 30V ±9V |
| IP rating | IP20 |
| Main functions | Automatic shutdown, Visibility+, Battery test, Lamp test, Anti-panic mode |
| Conductor cross-section | Up to 2.5 mm² |
| Compliance standards | Meets ERP and fire safety regulatory requirements |
