Eaton

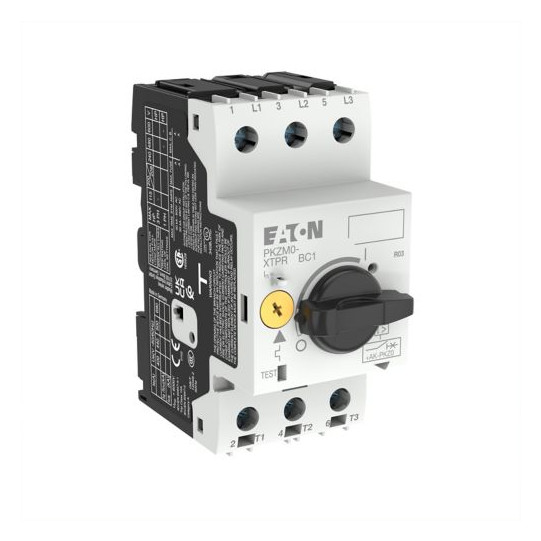

Motor circuit breaker 10A 3P 4kW 690V – 072729
ETN072729
€30.82
Excl. Tax
€36.98
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock –
Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Attribute | Detail |
|---|---|
| Reference / SKU | 072729 |
| Model code | PKM0-10 |
| EAN / GTIN | 4015080727293 |
| Rated voltage | 690 V AC |
| Rated uninterrupted current (Iu) | 10 A |
| Number of poles | 3 |
| Connection type | Screw terminals |
| Degree of protection | IP20 |
| Actuator type | Turn button |
| Rated motor power AC-3 | 2.2 kW (230 V) / 4 kW (400 V) / 7.5 kW (690 V) |
| Short-circuit release | Magnetic (Irm 155 A) |
| Thermal protection | Not included |
| Suitable for IE3-class motors | Yes |
| Length / Depth | 76 mm |
| Height | 93 mm |
| Width | 45 mm |
| Weight | 0.288 kg |
| Standards & certifications | IEC/EN 60947, VDE 0660 |
| Operating temperature range | -25 °C to +55 °C |
| Mounting | DIN rail IEC/EN 60715 |
| Short-circuit breaking capacity (Icu) | 150 kA @ 400 V, 3 kA @ 690 V |
