Eaton

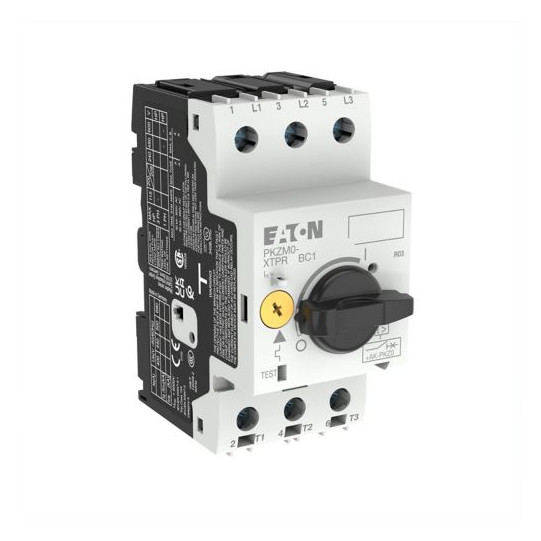

Motor circuit breaker 20–25A 3P 12.5kW 690V – 046989
ETN046989
€51.44
Excl. Tax
€61.73
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock –
Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Attribute | Detail |
|---|---|
| Reference / SKU | 046989 |
| Model code | PKZM0-25 |
| EAN / GTIN | 4015080469896 |
| Rated voltage | 690 V AC |
| Adjustment current range | 20 → 25 A |
| Number of poles | 3 |
| Connection type | Screw terminals |
| Degree of protection | IP20 |
| Rated motor power (AC-3) | ~12.5 kW at 400 V |
| Length / Depth | 76 mm |
| Height | 93 mm |
| Width | 45 mm |
| Weight | ~0.294 kg |
| Standards & certifications | IEC/EN 60947, IEC/EN 60947-4-1, UL, VDE 0660, CSA, CE |
| Operating temperature range | -25 °C to +55 °C |
| Mounting | DIN rail IEC/EN 60715 |
| Motor protection | Phase-failure sensitive |
| Actuator type | Turn button |
| Explosion safety category (dust) | ATEX dust protection, Ex II (2) GD |
