Schneider Electric

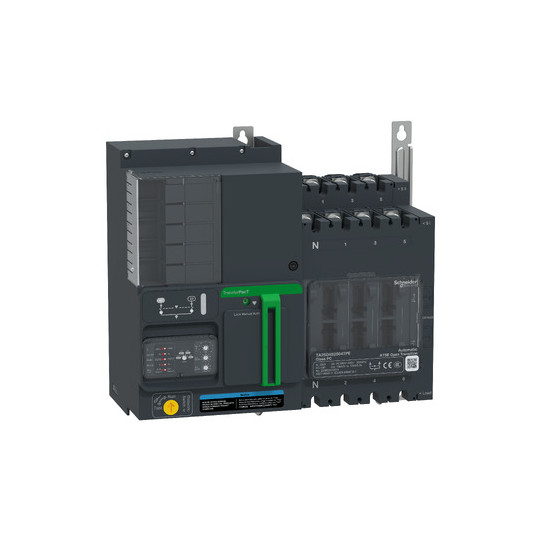

Automatic Transfer Switch 250A 4P 400V – TransferPacT
TA25D4S2504TPE
€1,997.62
Excl. Tax
€2,397.14
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
Supply in process - Average delivery 5 days
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
The Schneider Electric TransferPacT 250A (reference TA25D4S2504TPE) is an automatic transfer switch (ATS) designed to ensure power supply continuity by automatically transferring between two power sources (utility / generator).
Designed for low-voltage switchboards in commercial and industrial applications, this 4-pole (4P) ATS operates on 400 V AC networks and complies with IEC 60947-6-1.
It features automatic and manual operation, mechanical interlocking, LED indicators for power and alarms, and padlocking options for safe operation and maintenance.
| Brand | Schneider Electric |
|---|---|
| Range | TransferPacT |
| Reference | TA25D4S2504TPE |
| Product type | Automatic transfer switch (ATS) |
| Application | Automatic power supply source changeover |
| Poles | 4P |
| Contact positions | 3 |
| Rated operational current (Ie) | 250 A |
| Rated thermal current (Ith) | 250 A at 60 °C |
| Rated operational voltage (Ue) | 400 V AC – 50/60 Hz |
| Utilization category | AC-33B |
| Rated making capacity (Icm) | 30 kA alone – 330 kA with upstream breaker |
| Short-time withstand current (Icw) | 10 kA / 0.5 s – 15 kA / 0.1 s |
| Operating mode | Automatic / Manual |
| Control type | Selector switch / rotary knob |
| Local signalling | Green LED (power) – Red LED (alarm) |
| Mounting | Fixed – plate |
| IP rating | IP40 (front face in auto mode) |
| Protection class | Class II |
| Operating temperature | -25 °C to +70 °C |
| Dimensions (H × W × D) | 341 × 370 × 185.8 mm |
| Net weight | 13.3 kg |
| Standards | IEC 60947-6-1 |
| Warranty | 18 months |
