Schneider Electric

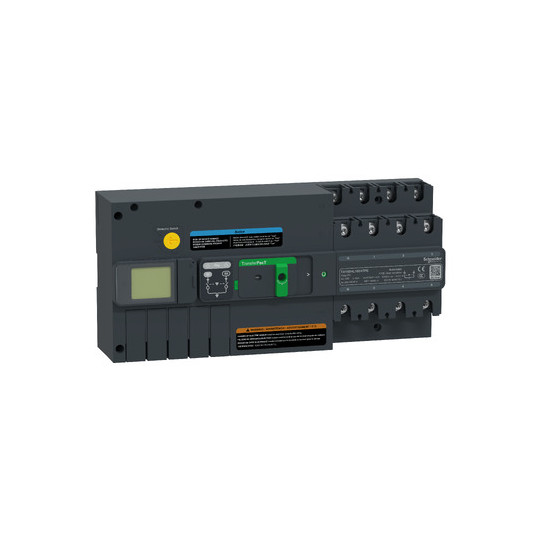

Automatic Transfer Switch 160A 4P 400V LCD – TransferPacT Active

TA16D4L1604TPE

€1,688.43 Excl. Tax
€2,026.12 Inc. Tax
preorder Supply in process - Average delivery 5 days
  • check2 Technical support and dedicated single point of contact
  • check2 Free delivery from 200€ of purchase (Metropolitan France)
  • check2 100% secure payments maestro mastercard visa payplug applepay
Technical informations

The Schneider Electric TransferPacT Active 160A (reference TA16D4L1604TPE) is an automatic transfer switch (ATS) featuring an integrated LCD display, designed to ensure power supply continuity by automatically transferring between two power sources (utility / generator).

Designed for low-voltage switchboards in commercial and industrial applications, this 4-pole (4P) ATS operates on 400 V AC networks and complies with IEC 60947-6-1.

The front LCD screen allows local control, real-time monitoring, alarm display and parameter settings. It supports automatic and manual operation, includes mechanical interlocking, and offers padlocking in OFF position for safe maintenance.

BrandSchneider Electric
RangeTransferPacT Active
ReferenceTA16D4L1604TPE
Product typeAutomatic transfer switch with LCD display (ATS)
ApplicationAutomatic power supply source changeover
Poles4P
Contact positions3
Rated operational current (Ie)160 A
Rated thermal current (Ith)160 A at 60 °C
Rated operational voltage (Ue)400 V AC – 50/60 Hz
Utilization categoryAC-33B
Rated making capacity (Icm)20 kA alone – 154 kA with upstream breaker
Short-time withstand current (Icw)10 kA / 0.1 s
Control type4 push-buttons
DisplayIntegrated LCD screen
Operating modeAutomatic / Manual
MountingFixed – DIN rail or plate
IP ratingIP40 front face (auto mode)
Protection classClass II
Operating temperature-25 °C to +70 °C
Dimensions (H × W × D)164 × 351 × 95 mm
Net weight5.6 kg
StandardsIEC 60947-6-1
Warranty18 months
