Socomec

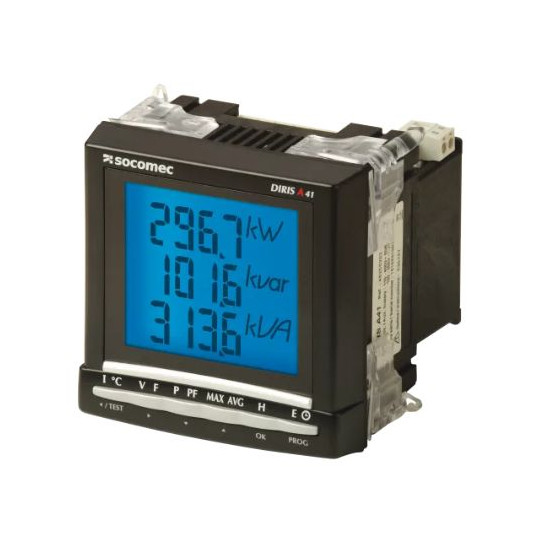

DIRIS A41 Multi-circuit metering & measurement with neutral current measurement
48250404
€824.10
Excl. Tax
€988.92
Inc. Tax
Excl. Tax
Excl. Tax
Incl. Tax
Incl. Tax
You save
In stock –
Dispatched within 24/48h
- Technical support and dedicated single point of contact
- Free delivery from 200€ of purchase (Metropolitan France)
- 100% secure payments
Technical informations
| Type: | Panel-mounted 110-400 VAC / 120-350 VDC |
|---|---|
| Standards: | CE |
| Model: | DIRIS A-41 |
| Gtin/ean: | 3596033014857 |
| Application: | Analysis |
| Custom No.: | 90303100 |
| Designation: | 48250404-DIRIS A-41 |
| Country of origin: | TN |
| Content unit: | PC |
| Conformity to standards: | IEC UL |
| Communication ports: | Optional RS485 or Ethernet |
| Communication Protocols: | Optional Modbus RTU, TCP or Profibus |
| Width of packing unit: | 0.16 |
| Length of packing unit: | 0.12 |
| Gross weight of the packing unit: | 0.69 |
| Depth of packing unit: | 0.24 |
| Depth: | 95mm |
| Maximum measurement: | 11 (Current) kA, 500 (Voltage) V ac, 65 (Frequency) Hz |
| Minimum measurement: | 0 (Current) kA, 45 (Frequency) Hz, 50 (Voltage) V ac |
| Measuring terminal: | 0 ? 11 (Current) kA, 45 ? 65 (Frequency) Hz, 50 ? 500 (Voltage) V ac |
| No. of phases: | 3 |
| Display type: | LCD backlit |
| Meter type: | Digital |
| Pulse output: | Yes |
| Cutting height: | 96mm |
| Cutting width: | 96mm |
| Maximum temperature: | +55°C |
| Minimum temperature: | -10°C |
| Accuracy of the indicator: | ±1 %, classe 0,5 S (CEI 62053-22), classe 2 (CEI 62053-23) |
