22304004 - SOCOMEC

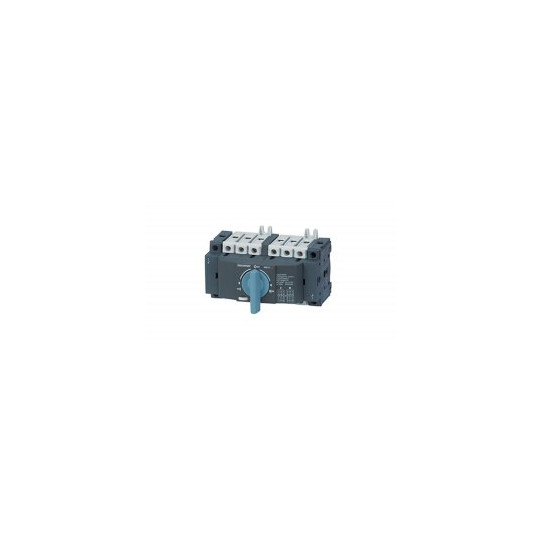

SIRCO M1 I-0-II 4P 40A Manual Transfer switch
€164.65
€137.21
In stock
Main features
The SIRCO M1 22304004 is a manual transfer switch, 40A, 4-pole.
Related accessories:
- 22395012: blue direct handle
- 22395013: red direct handle
- 14635113: type SOOO – external lockable handle I-0-II, padlock, 1 position, black, IP65
- 14731113: SOO type – external lockable handle I-0-II, padlock, 1 position, black, IP65
- 14032113: type SO1 – external lockable handle I-0-II, padlock, 1 position, black, IP65
- 14032813: type SO1 – external handle I-0-II, padlock, 3 positions, black, IP65
- 14070515 / 14070520 / 14070532: SOOO and SOO type – Shaft for external front and side handle – 150mm / 200mm / 320mm
- 14040520 / 14040532: type SO1 – shaft for external handle – 200mm / 320mm
- 22990001 / 22990011: type M – auxiliary contact – 1 contact O+F / 1 contact 2F
- 22941005 / 22943005: terminal cover – 1P / 3P
- 22993005 / 22994005: bridging bars – 3P / 4P
Details
- Rating (A) : 40
- Gtin/ean : 3596031962983
- Custom No. : 85365080
- Designation : 22304004-COMMUT M1 4X40A
- Country of origin : CN
- No. of poles : 4
- Product weight : 0.61
- Case size : M1
- Content unit : PC
- Product width : 0.0975
- Product length : 0.068
- Product depth : 0.089
- Conformity to standards : IEC
- Width of packing unit : 0.085
- Length of packing unit : 0.16
- Gross weight of the packing unit : 0.61
- Depth of packing unit : 0.115
- Range : SIRCO
- Width : 68mm
- Length : 97.5mm
- Depth : 95mm
- Maximum current : 40A
- Nominal voltage : 400 V ac, 415V c.a.
- Electrical phase : 3
- Power range : 18KW
- Termination type : Screw
- Case degree of protection : IP20
- Minimum operating temperature : -25°C
- Maximum operating temperature : +70°C
Additional information
"
The SIRCO M1 22304004 is a manual transfer switch, 40A, 4 poles, with fully visible breaking.
The device in its naked form requires to be associated with accessories (listed below).
Associated accessories:
- 22395012: blue direct handle
- 22395013: red direct handle
- 14635113: type S000 - unlockable external handle I-0-II, padlock, 1 position, black, IP65
- 14731113: type S00 - unlockable external handle I-0-II, padlock, 1 position, black, IP65
- 14032113: type S01 - unlockable external handle I-0-II, padlock, 1 position, black, IP65
- 14032813: type S01 - external handle I-0-II, padlock, 3 positions, black, IP65
- 14070515 / 14070520 / 14070532: type S000 and S00 - front external operation shaft - 150mm / 200mm / 320mm
- 14040520 / 14040532: type S01 - front external operation shaft - 200mm / 320mm
- 22990001 / 22990011: type M - auxiliary contact - 1 contact O+F / 1 contact 2F
- 22941005 / 22943005: terminal cover - 1P / 3P
- 22993005 / 22994005: bridging kit - 3P / 4P
More Information
- Code EAN : 3596031962983
- Special Price : 137.21
